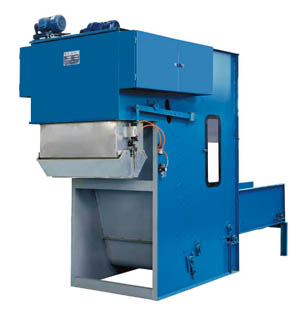

該機是將原料及回料進行混合開松由風機輸送至下道工序。
Raw material and recovery material can be opened by this machine and then transmitted by fan to next procedure.
一．技術參數：Technical parameters
1. 機幅Width of machine：1000mm,1200mm
2. 產量Output：300-400kg/h
3. 功率Power：7KW
二.結構描述Description of structure
1.錫林Cylinder：直徑Φ600mm,采用高強度復合木質針板、針布、羊角釘
diameterΦ600mm,Use high strength compound wood needle plate,card clothing and cavel style nail.
2.喂入輥Inlet roller：直徑Φ86mm,溝槽握持，外徑鍍鉻處理
diameterΦ86mm,slot holding,outside diameter is treated by chromium electroplating.
3.喂入簾Inlet curtain：采用pvc皮簾子 use pvc rubber curtain |
